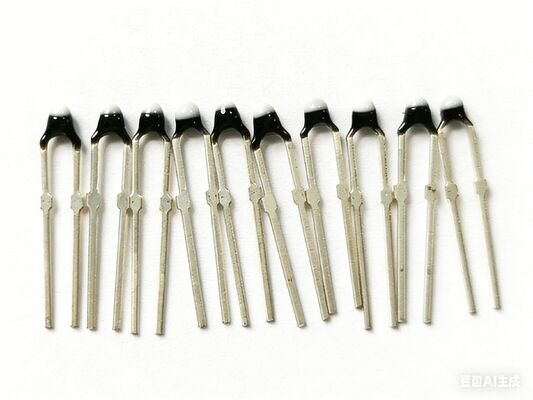

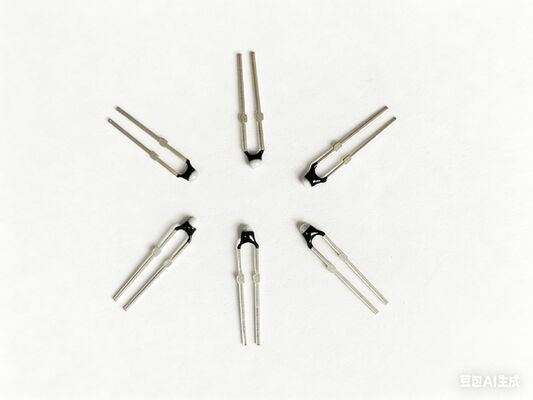

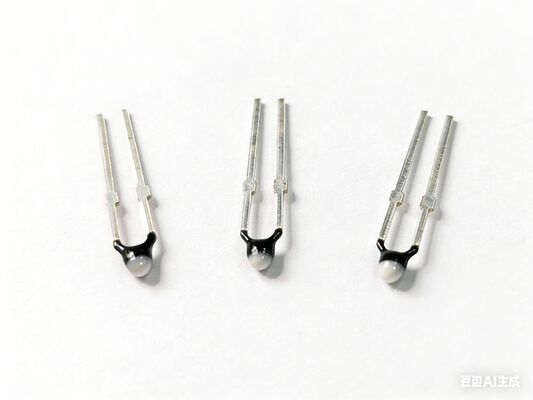

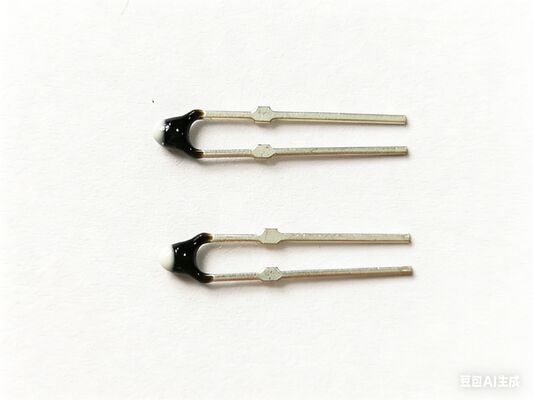

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | Hefei Minsing |
| Sertifika: | IATF16949/ISO9001/CE/RoHS |
| Model numarası: | MF5A-3T |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 500 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Toplu |
| Teslim süresi: | 2-10 iş günü |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Yılda 50 Milyon Adet |
|
Detay Bilgi |
|||
| Başlık: | Epoksi | Kurşun Tel: | 0,5 kalay kaplı 42 alaşım |
|---|---|---|---|
| Kafa büyüklüğü: | Φ2,4×Φ3,7mm | Tel uzunluğu: | 17 mm |
| R25°C: | 0.5KΩ-2000KΩ | B değeri: | 3000K-4500K |
| R Toleransı: | ±%1,±%2,±%3, ±%5 | B toleransı: | ±%0,5 ila ±%3 |
Ürün Açıklaması
103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
